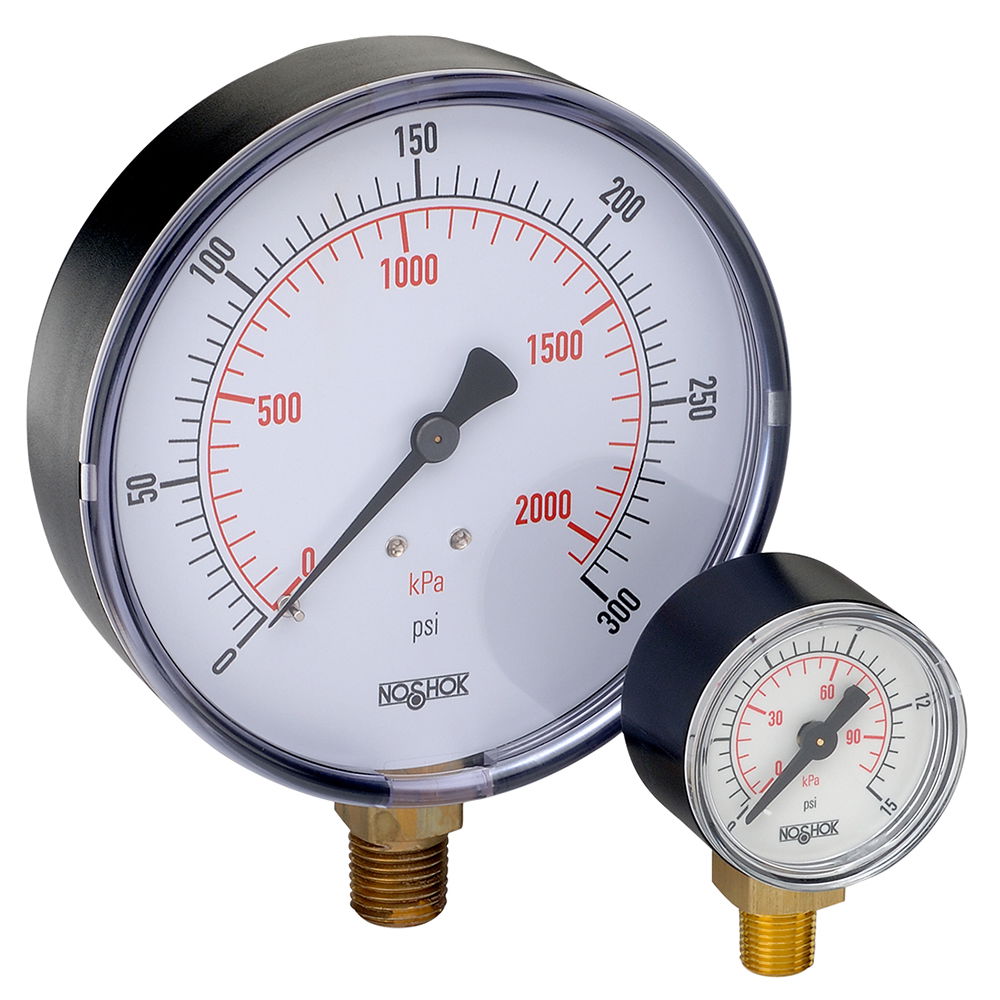

Name: 20-100-160-psi/kPa Pressure Gauge, 2" ABS Case, Copper Alloy Internals, 160 psi/kPa, 1/4 NPT Bottom Conn
Brand: NOSHOK
SKU: 20-100-160-psi/kPa

About

Accurate and reliable general purpose dry gauge with vacuum & compound ranges, and ABS or Steel case. Ideal for applications including hydraulics, pneumatics, medical, pumps, compressors, refrigeration controls and more.

Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.

Cleaning for Oxygen Service (O₂) is available only for dry or HL (Halocarbon) filled gauges.

Featured Specifications

Accuracy

±2.5% Full Scale

Gauge Size

2 in

Pressure Range

0 to 160 psi

Case Material

Acrylonitrile Butadiene Styrene (ABS)

Connection

1/4" NPT

Connection Location

Bottom

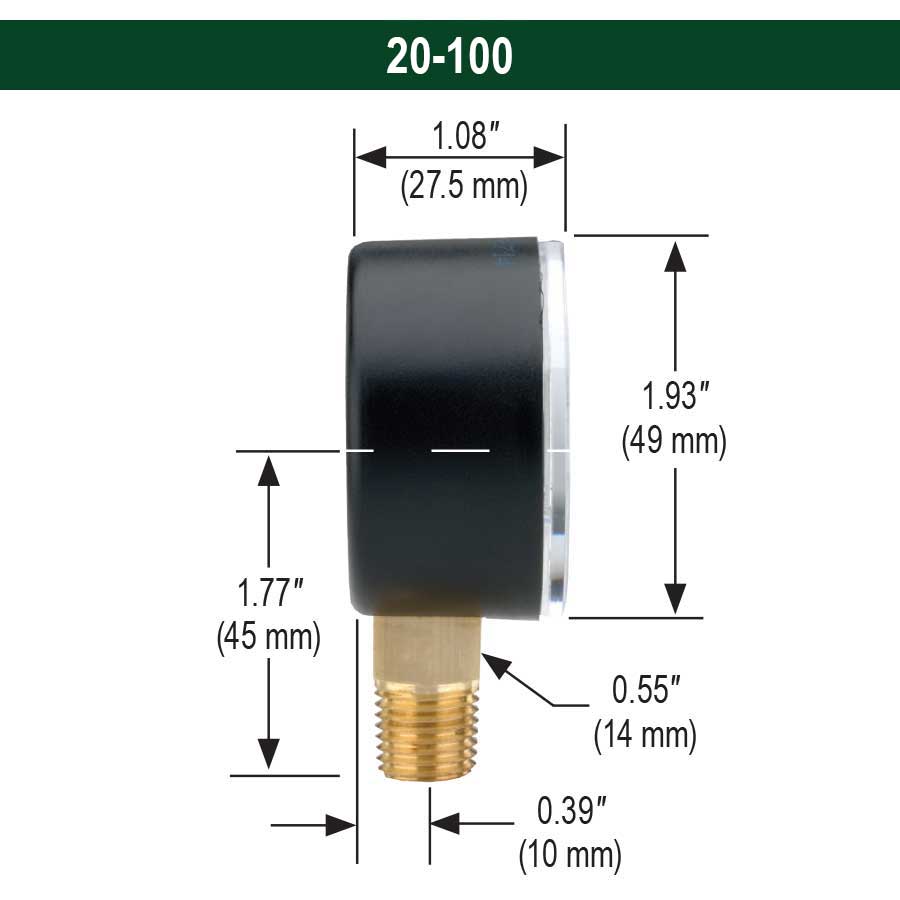

Dimensions

Data Sheet

User Manual

3D Model

Type	Dry Pressure Gauge
Connection	1/4" NPT
Connection Location	Bottom
Connection Material	Brass
Accuracy	2.5 % full scale (BFSL)
Gauge Size	2 in
Lens/Display Material	Acrylic
Dial	White background with black primary scale & red secondary scale. UV resistant.
Case Type	Acrylonitrile Butadiene Styrene (ABS), Bottom Connection
Series	100
Pointer	Molded Plastic
Movement	Brass & nylon, or all-brass with highly polished bearing surfaces
Warranty	1 yr
Pressure Range	0 to 160 psi
Scale Option	psi/kPa Dual Scale
Case Material	Acrylonitrile Butadiene Styrene (ABS)
Measuring Element	Copper Alloy Bourdon Tube
Related Items	102-MFB, 1/4" National Pipe Thread (NPT), Male x Female, Brass, 0.172" Orifice Hard Seat Mini Valve 102-MFC, 1/4" National Pipe Thread (NPT), Male x Female, Steel, 0.172" Orifice Hard Seat Mini Valve 102-MFS, 1/4" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, 0.172" Orifice Hard Seat Mini Valve 602-MFC, 1/4" National Pipe Thread (NPT), Male x Female, Steel, Hard Seat, 0.187" Orifice Block and Bleed Valve

Media Temperature Range ºF	-4 to 140 ºF
Media Temperature Range ºC	-20 to 60 ºC
Ambient Temperature Range ºF	-40 to 140 ºF
Ambient Temperature Range ºC	-40 to 60 ºC

Additional Information

General purpose non-fillable dry gauge
Vacuum and compound ranges through 0 psi to 15,000 psi
Standard impact-resistant ABS & Steel case
Copper alloy and Brass wetted parts

Installed Options and Accessories	Available Red Set Pointer (SP) 10-32-UNF-2B (10-32) Orifice - Brass Press Fit Sintered, 20 Micron (CPO) Orifice - Brass Press Fit 0.1 mm (BP1) Orifice - Brass Press Fit 0.3 mm (BP3) - Standard Orifice - Brass Press Fit 0.8 mm (BP8) Laser Marking (LM) Stainless Steel Tagging (ST) Certificates Certified Calibration (CC) Cleaning for Oxygen Service (O₂), Up to 1,000 psi Cleaning for Oxygen Service (O₂), 1,500 psi and up Consult Factory Black Steel Case (BSC) Chrome Case (CRC) Stainless Steel Case (SSC) Silicone Dampened Movement (SDM) Glass Lens (GL) (A Steel, Stainless or Chrome Case & Cover Ring must be additionally ordered when Lenses other than acrylic are utilized on all 100 Series Models) Chrome Front Flange (SCFF) Steel Case Black Front Flange (SBFF) Steel Case Black Cover Ring (BCR) Stainless Steel Cover Ring (SSCR) Chrome Cover Ring (CCR)
Uninstalled Options and Accessories	Certificate of Cleaning (COCL) Certificate of Conformance (COC)
Assembly Options	NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Diaphragm Seals	NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
Distribution Manifolds	NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
Pressure Snubbers Piston Type	Resist clogging and are self-cleaning Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20 Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"
Pressure Snubbers Sintered Type	Cost effective solution to protect expensive instrumentation Increases gauge readability by smoothing out pressure surges, pulsations and spikes 5 basic elements available for each snubber to accommodate specific application needs Snubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous element Exotic materials or intermediate disc grades available Provides long service life with no moving parts to wear out Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2
Steam Syphons	Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
Swivel Adapters	Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.

Application

Hydraulics & pneumatics
Medical
Pumps & compressors
Refrigeration controls
Utilities
Water management

Limitations Which Apply Are

Bourdon tube pressure gauges must be used within their calibrated maximum range to prevent damage
The pressure gauges must be operated within the following working pressure limits:

Dynamic Pressure application, 60% of the dial range
Static Pressure applications, where no sharp fluctuations occur, 90% of the dial range

The gauges must be operated within specified ambient temperature ranges
Determination of gauge failures will be made by NOSHOK, Inc., which will use its equipment and personnel or a certified test facility specializing in this type of evaluation and determination. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer. This written warranty applies only to the NOSHOK gauges referenced in the first paragraph of this warranty, sold by NOSHOK, Inc. and its authorized distributors.

Caution

Operating conditions including, but not limited to, system pressure, media compatibility and ambient conditions must be considered when selecting gauges and accessories. Improper selections and use of gauges could possibly cause gauge failure and lead to possible property damage or personal injury. Refer to the American National Standard ANSI B40.1 for the correct selection and use of gauges. A copy of this standard may be obtained from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th Street, New York, NY 10017.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Prop 65 Warnings

⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
