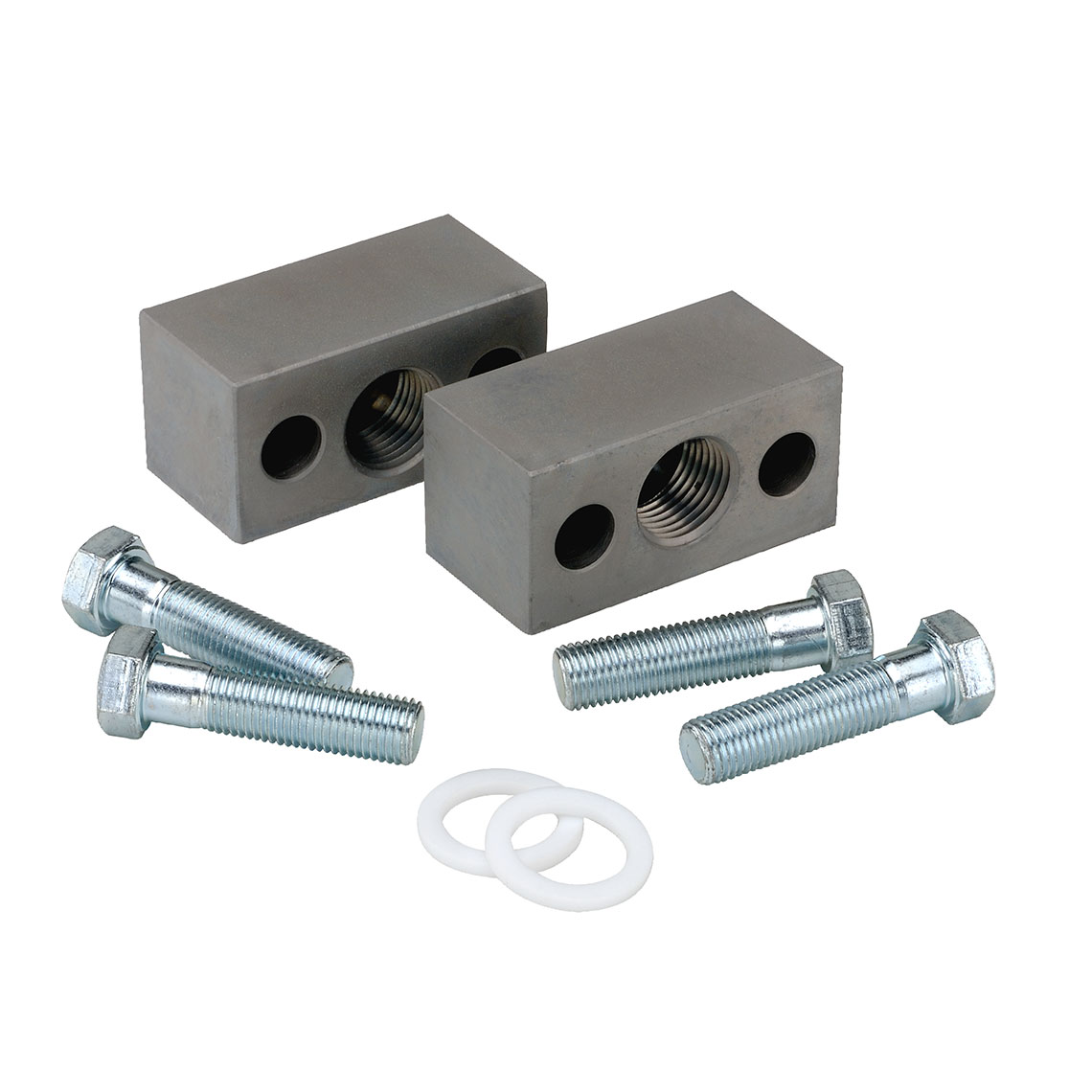

1/2 in. National Pipe Thread (NPT) Female 316 Stainless Steel Futbols
- Bolt to the process of flange-flange manifold to allow connection of process flange taps or process root valves
- Allow flanges to be connected to threaded process piping while maintaining the ease of removal or repair of the manifold if maintenance is required
- Provided a 1/16" offset connection from the bolt holes to give connection centers of 2", 2-1/8" or 2-1/4"

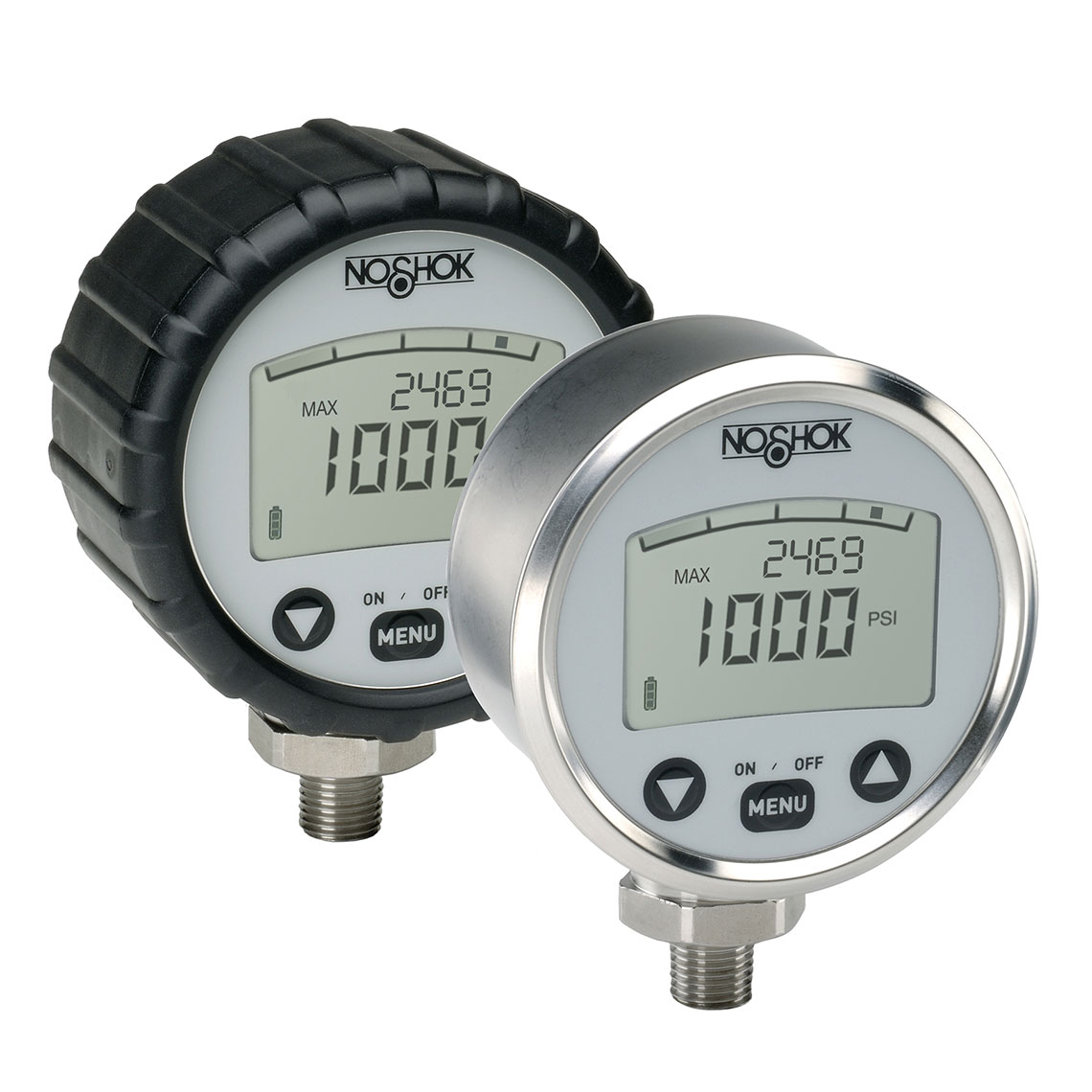

1000 Series Gauge Rubber Case Protectors
Rubber Case Protector for NOSHOK 1000 Series Digital Pressure Gauge. Ideal for gauges that are subjected to direct physical shock.
1950 Series National Electrical Manufacturers Association (NEMA) 4 Enclosures
This enclosure is designed for use with the 1950 units. The enclosures are large enough to accommodate a Power Supply (PS3) attached to the unit. These rugged enclosures are fabricated of formed steel with all seams welded to withstand NEMA 4/IP65 wash-down applications.

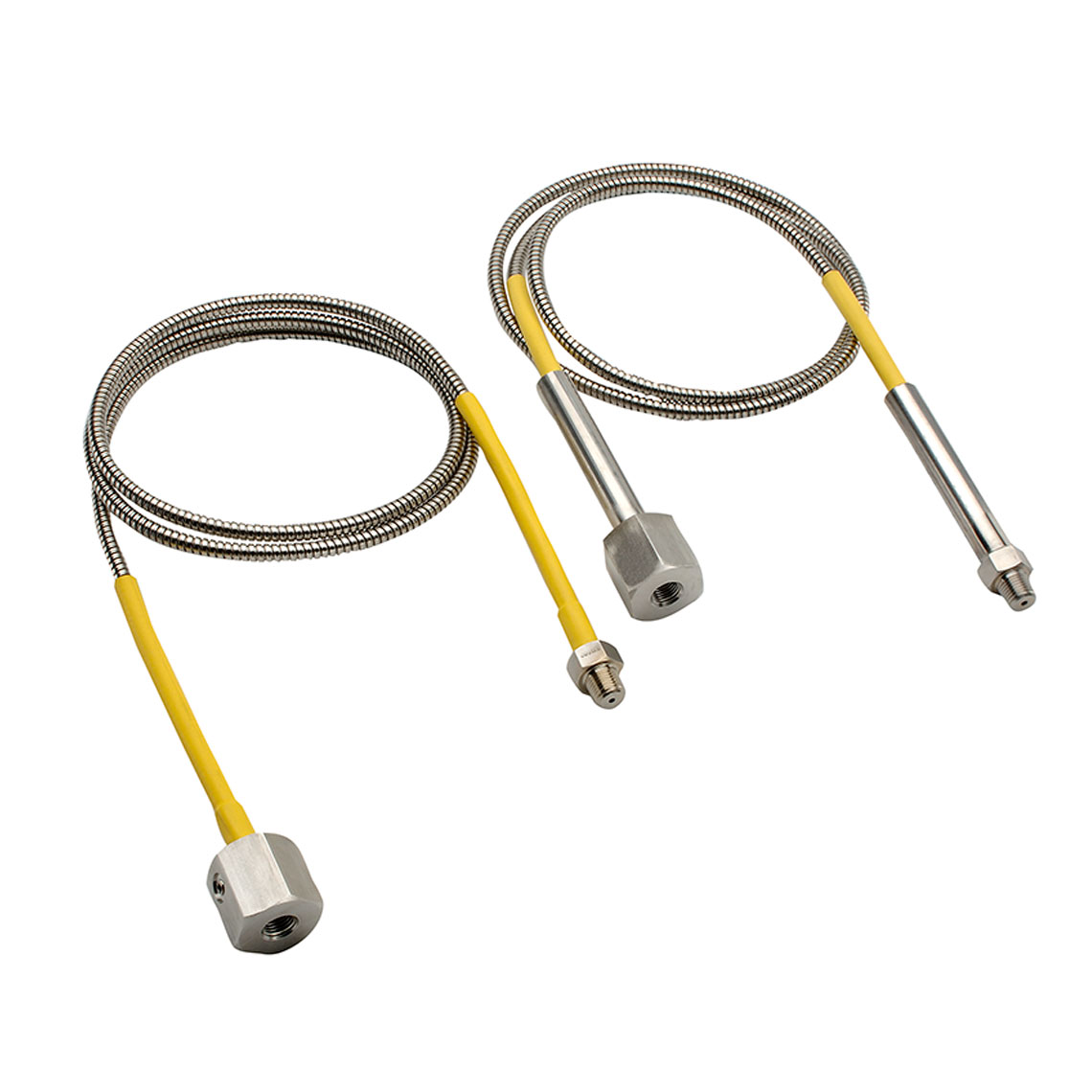

Armored Capillaries
- Stainless Steel capillaries available with or without stainless Steel armor
- Protects the instrument from high or low process temperatures
- Allows remote mounting of pressure instrument(s)

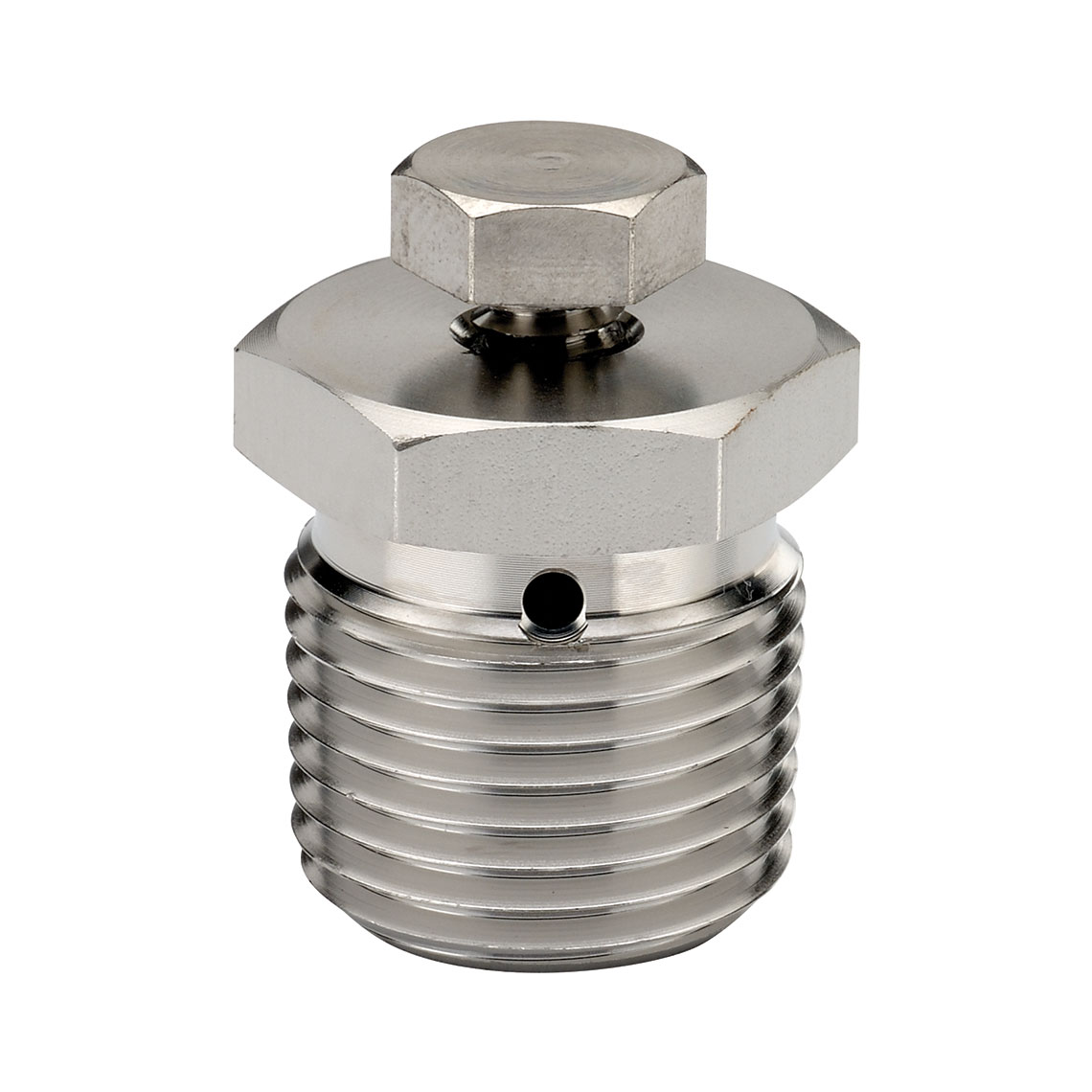

Bleed Plugs
For venting media or pressure out of the system.
Cables with Mating Connectors
Chrome Adapter Rings
1.5" Chrome Adapter Ring for NOSHOK 100 Series Pressure Gauge, for smaller gauges to fit into larger panel mount hole cut-outs.

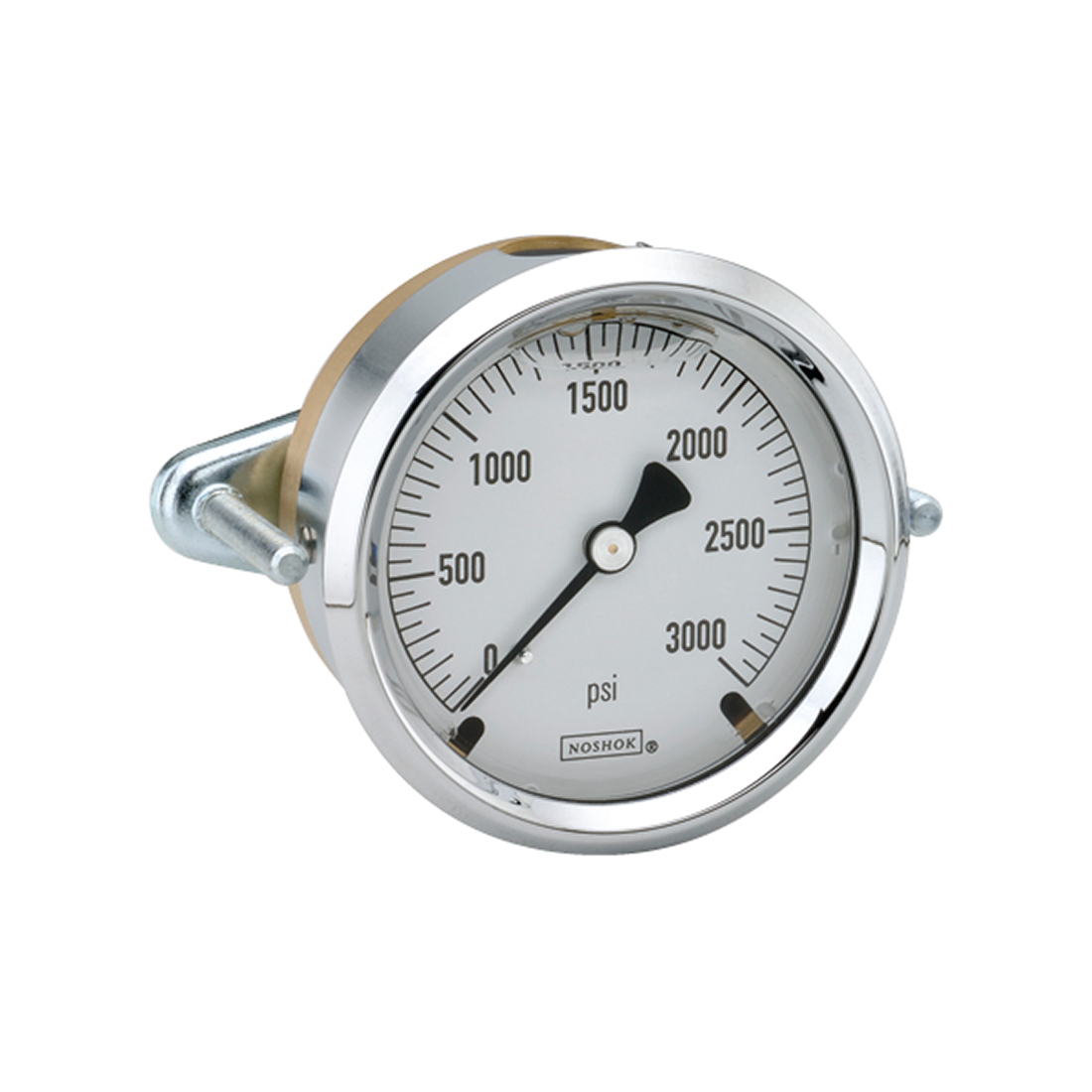

Chrome Bezels with U-Clamps
4" Chrome Bezel with U-Clamp for NOSHOK back connected 300 Series Pressure Gauge to allow easy mounting of gauge to instrument panels.
Differential Pressure to Differential Pressure Adapters
NOSHOK differential pressure to differential pressure adapter allow two differential pressure transmitters to be mounted on a single set of orifice taps. This configuration is ideal for applications such as bi-directional flow, and custody transfer where only a single set of orifice taps is available. Multiple adapters are available for various application configurations and space restrictions.

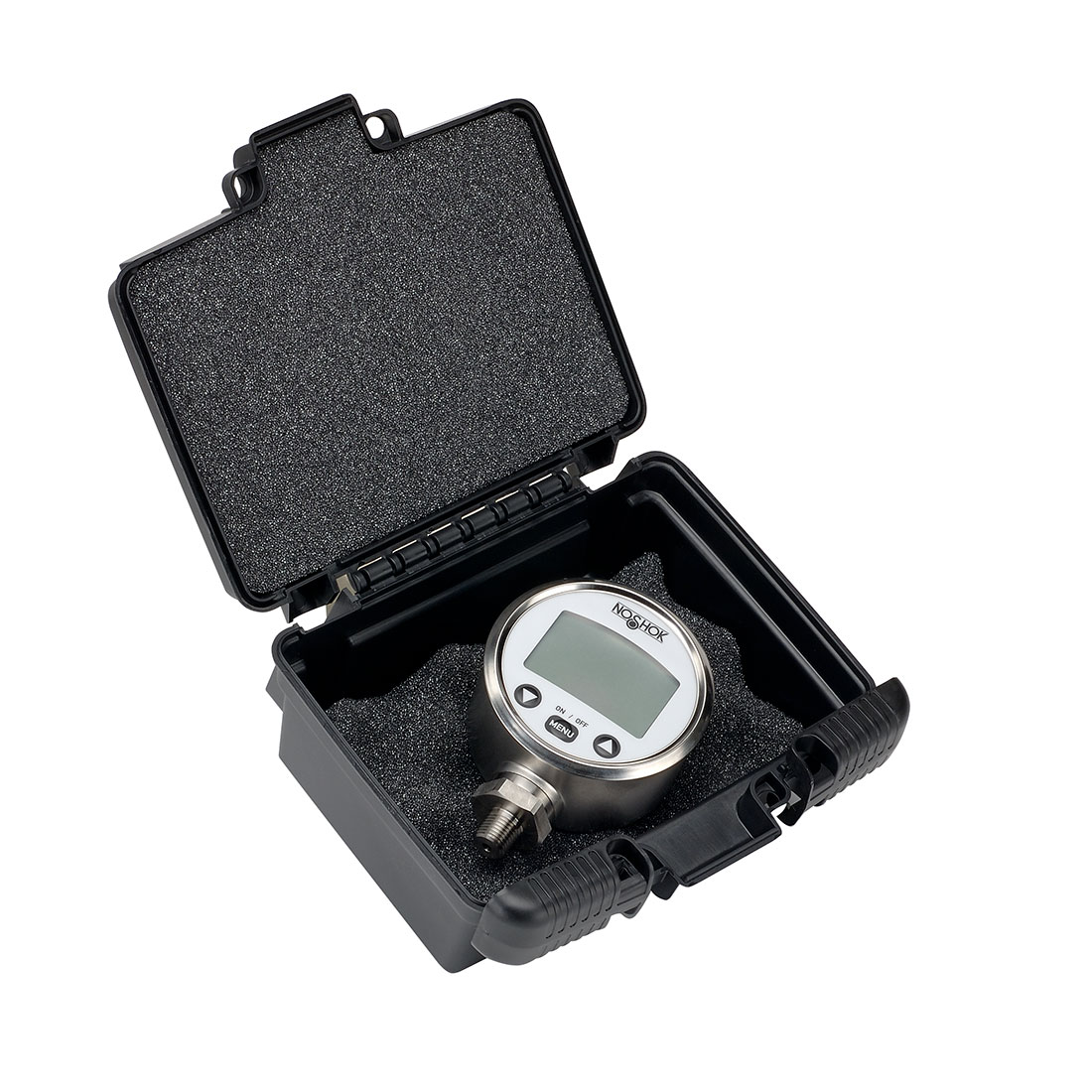

Digital Gauge Carrying Cases
Convenient custom case to store or transport the NOSHOK 1000 Series Digital Pressure Gauge.
Flange Rings
Flange Ring for 2.5" NOSHOK 400 Series, 500 Series and 900 Series Pressure Gauges. Adapter for smaller gauges to fit into larger panel mount hole cut-outs.

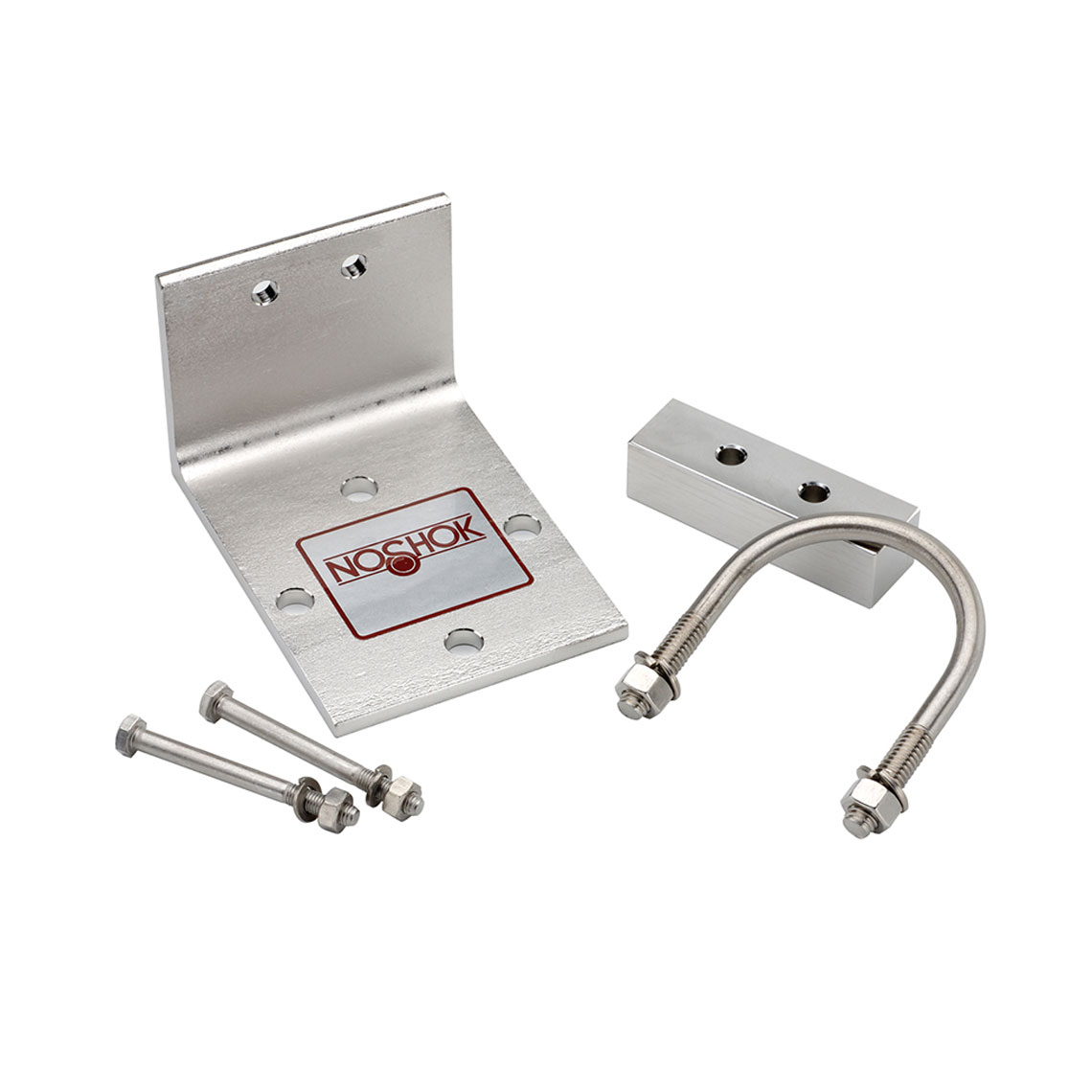

Mounting Kits
The manifold mounting kit is designed for direct or remote mounting to a two-inch pipe stand. This kit can be used with any NOSHOK 2, 3, or 5-valve manifold by mounting a Steel or Stainless Steel bracket directly to the manifold body.

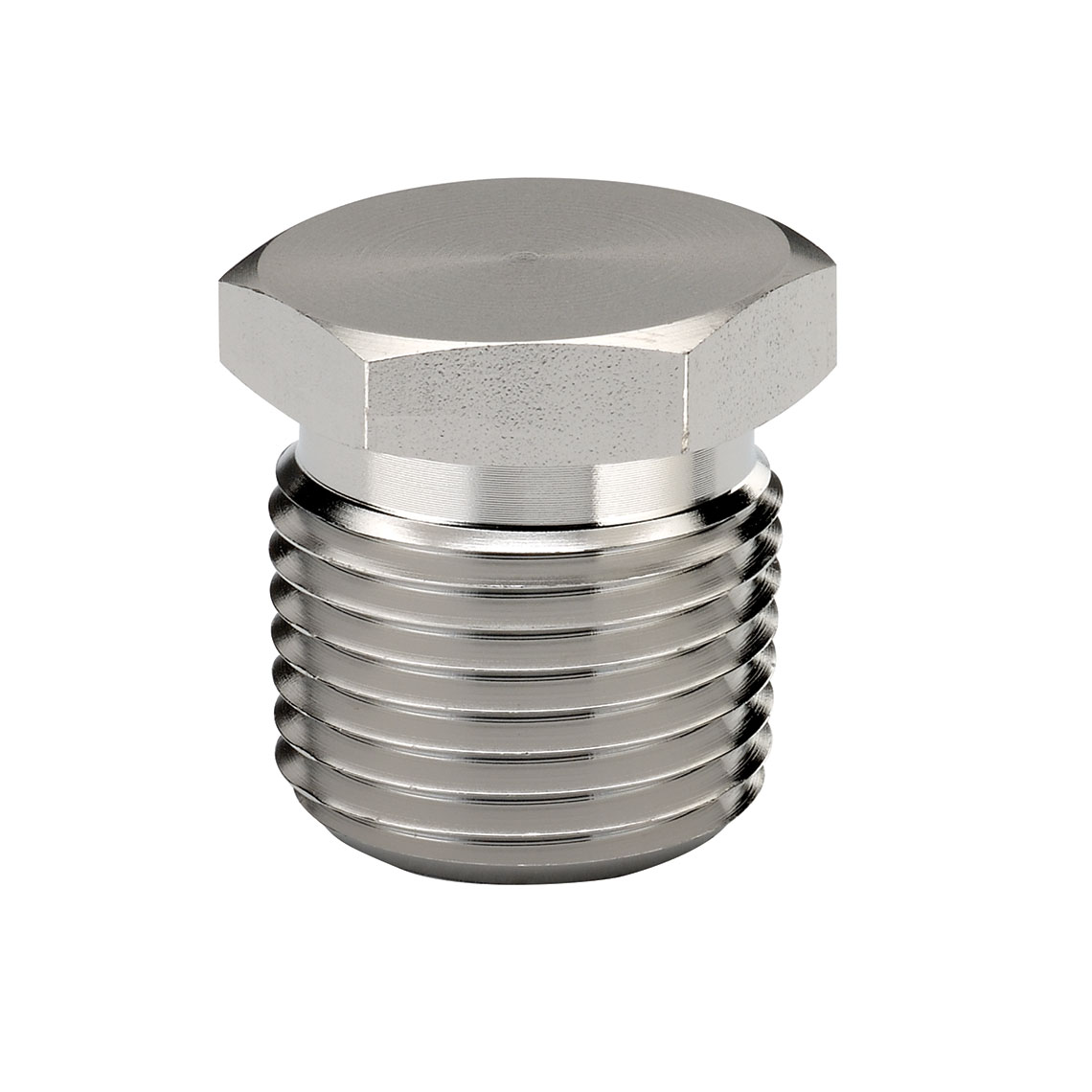

National Pipe Thread (NPT) Plugs
1/2" NPT Plug, Stainless
Orifices
0.3 mm Brass Orifice Brass Press Fit Orifice

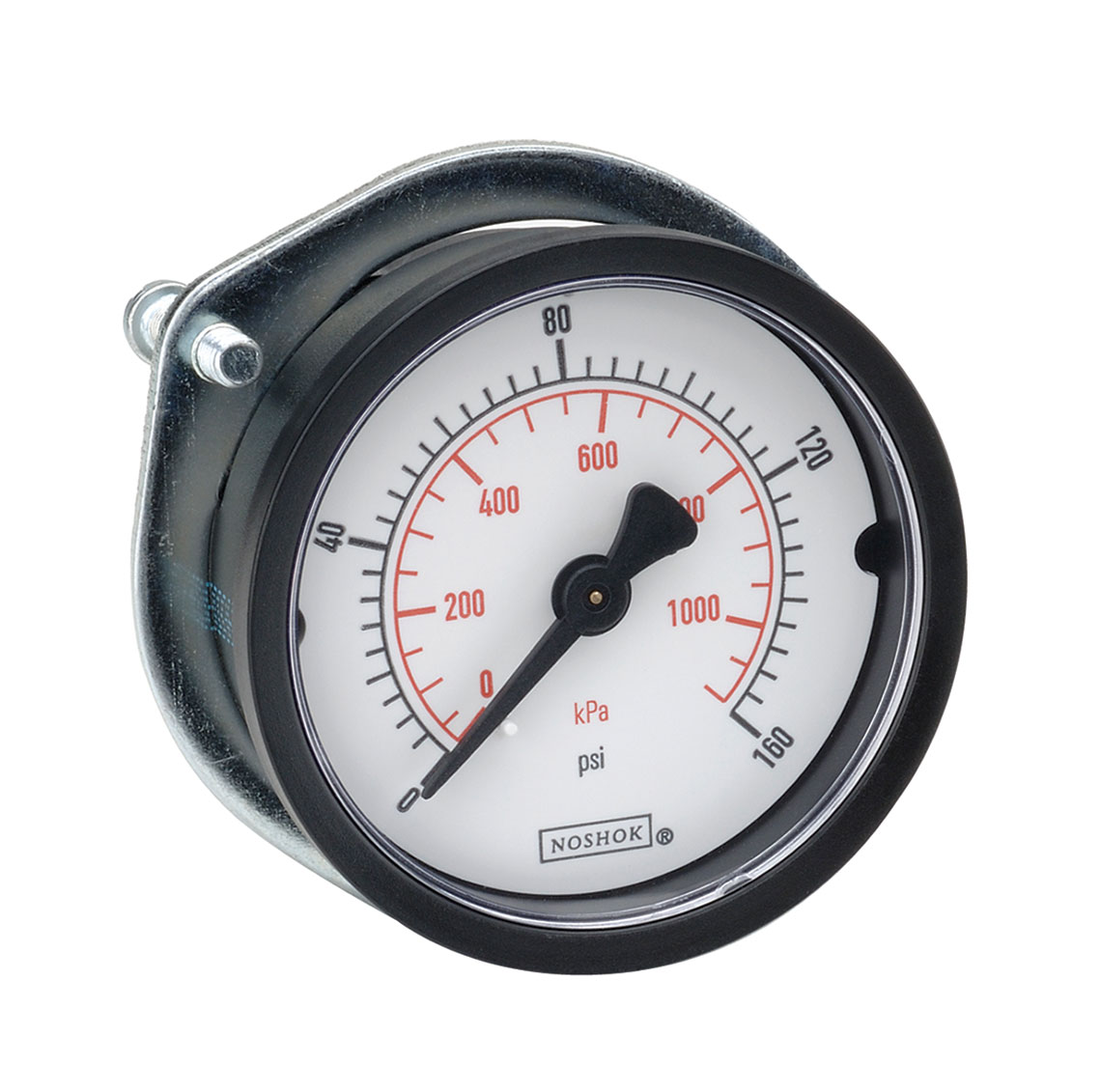

Panel Mount Clamps
Panel Mount Clamp for NOSHOK 2" back connected 100 Series Pressure Gauge. Panel Mount Clamps are designed for gauges that are mounted to panels, to attach the gauge securely to the mounting surface.
Panel Mount Rings
4.5" Black Panel Mount Ring to mount a NOSHOK 600 Series or 700 Series Pressure Gauge into a panel.
Pigtail Steam Syphons
- Protect the instrument from the damaging effects of high temperature steam
- Recommended for use in steam applications and systems that contain superheated vapor
- Available in 1/4" and 1/2" NPT sizes in welded Steel, welded 316 Stainless Steel or seamless 316 stainless steel with rating to 3,800 psi at 850 ºF

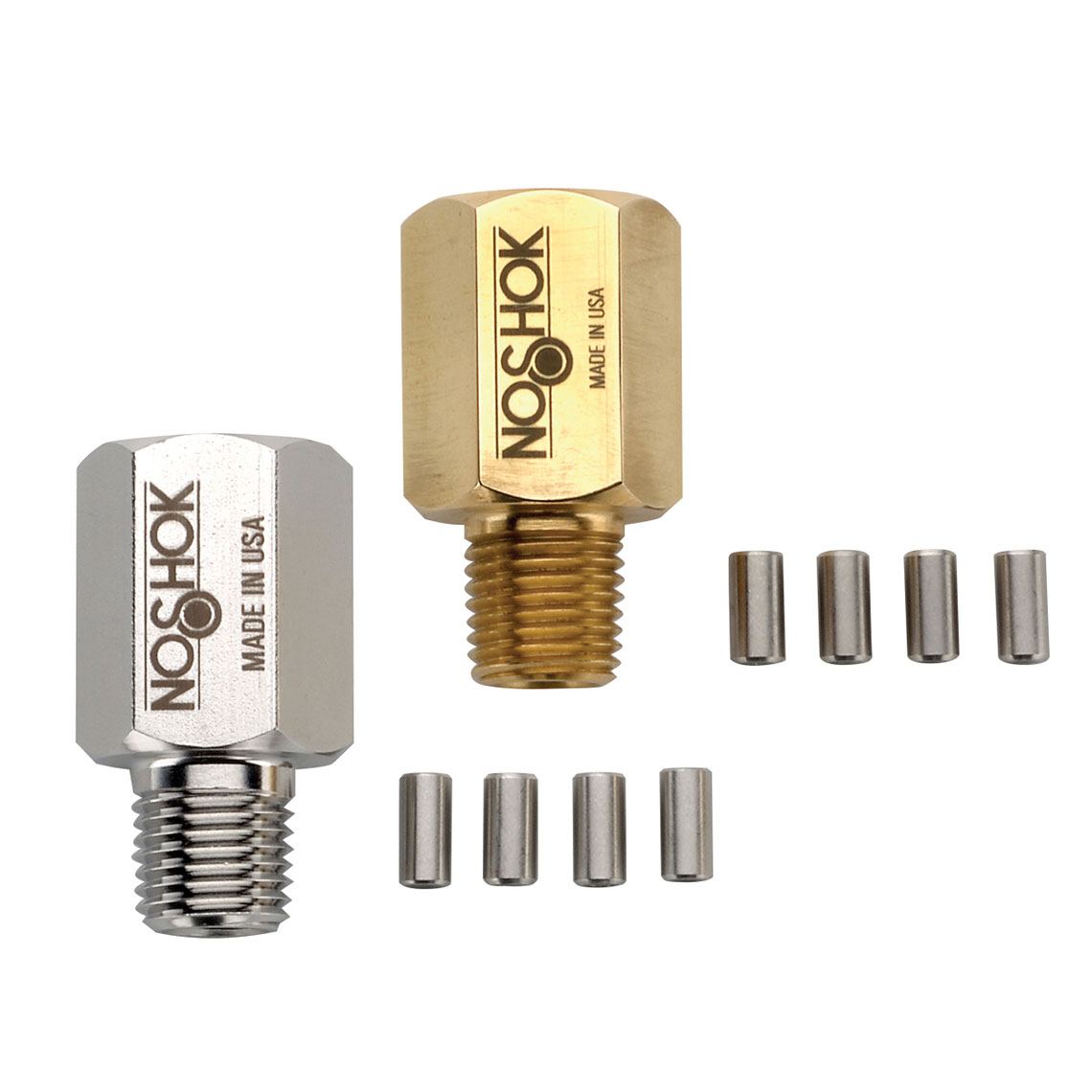

Piston-Type Snubbers
- Resist clogging and are self cleaning
- Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application

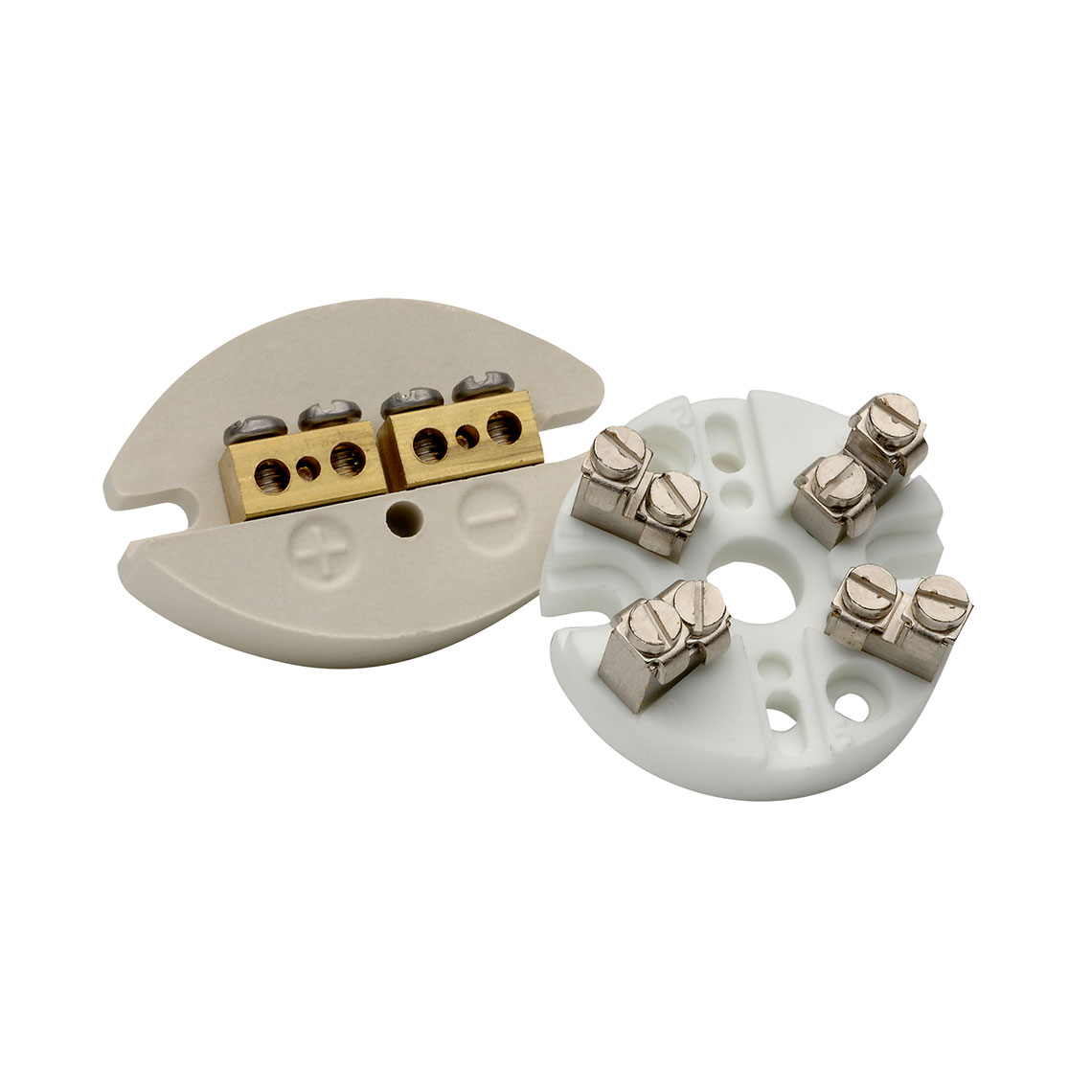

Resistance Temperature Device (RTD) Terminal Blocks
- Provided with a steatite ceramic base, brass terminal pieces, and stainless steel screws
- Not rated for high voltage use
- Can be used in temperature sensor or low voltage Class 2 circuits

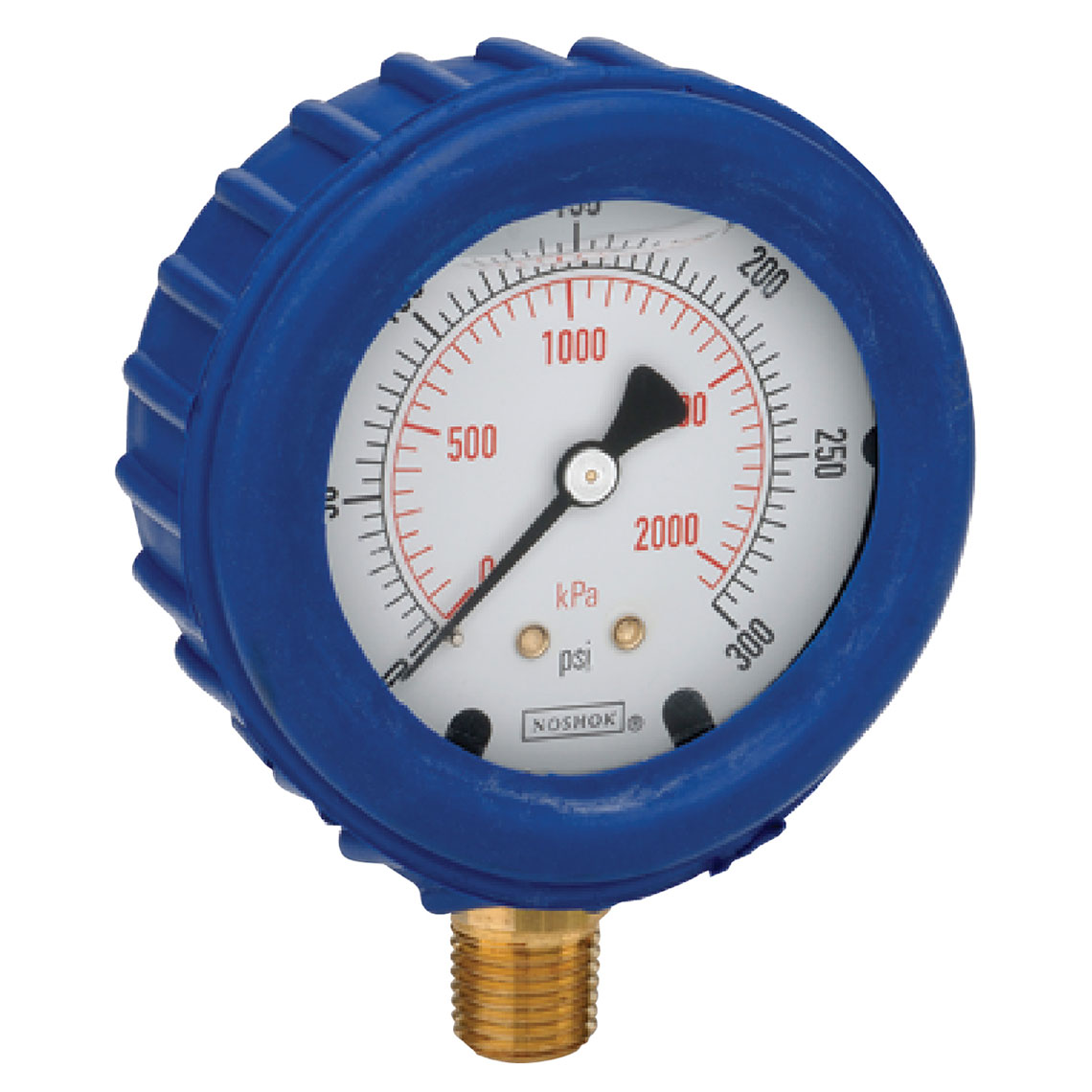

Rubber Case Protectors
Rubber Case Protector for NOSHOK 2.5" bottom connected Pressure Gauges. Ideal for gauges that are subjected to direct physical shock.
Sintered Disks
Sintered Snubbers Replacement Disk, average air flow estimate 0.63 L/MIN at 1 psi, Micron grade 10 (reference), suggested use for gases, water
Sintered Snubbers
- Cost effective solution to protect expensive instrumentation
- Increases gauge readability by smoothing out pressure surges, pulsations and spikes
- 5 basic elements available for each snubber to accommodate specific application needs
- Snubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous element
- Exotic materials or inter...

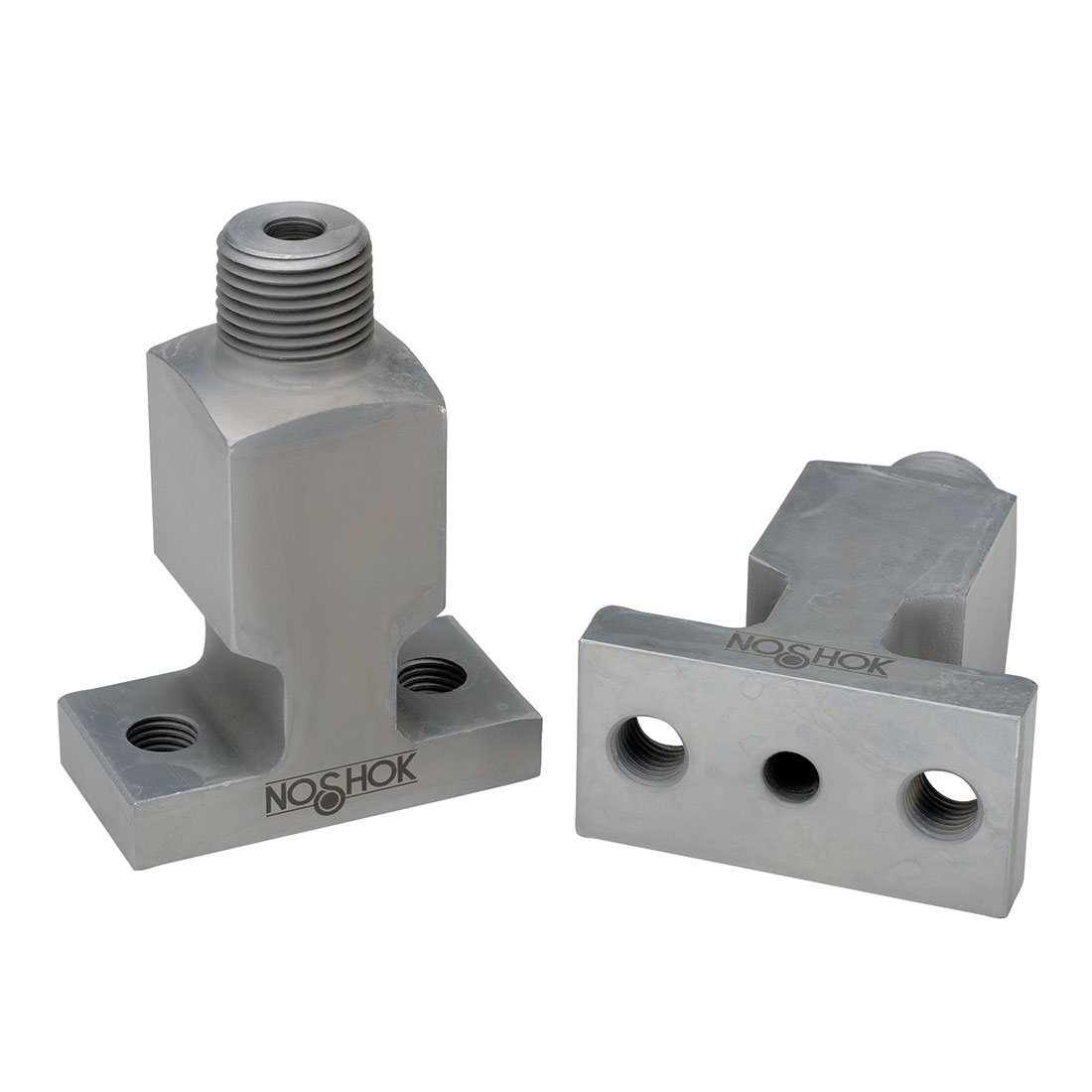

Static Adapters
- Joins threaded ports to a flange style connection
- Often used to join the NPT port of a static transmitter with a flange mounted connection on a differential pressure to static adapter plate
- Available in Zinc-Nickel plated Steel and electropolished 316 Stainless Steel

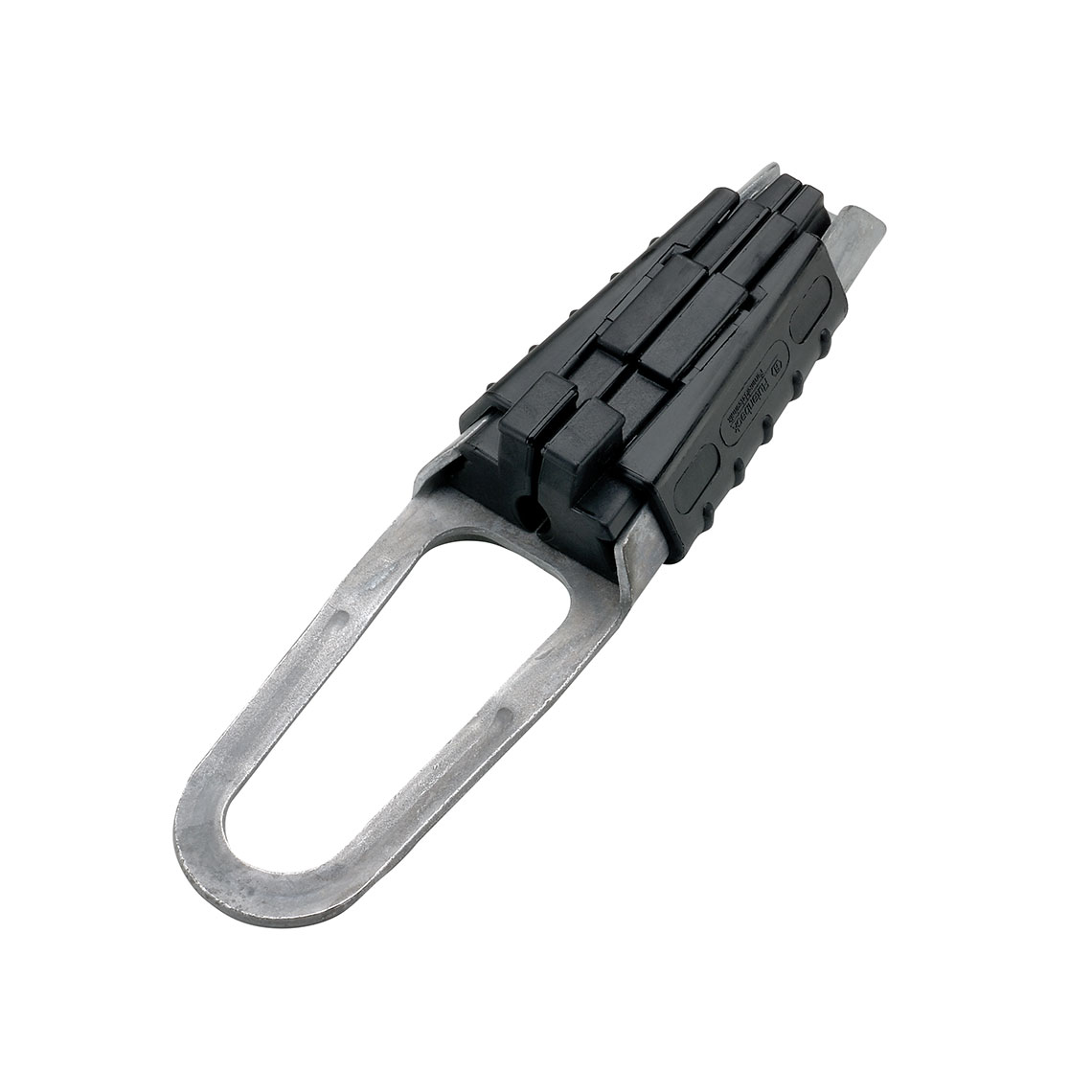

Submersible Cable Clamps
Secures the cable and transmitter in place for positioning or stability within a tank.

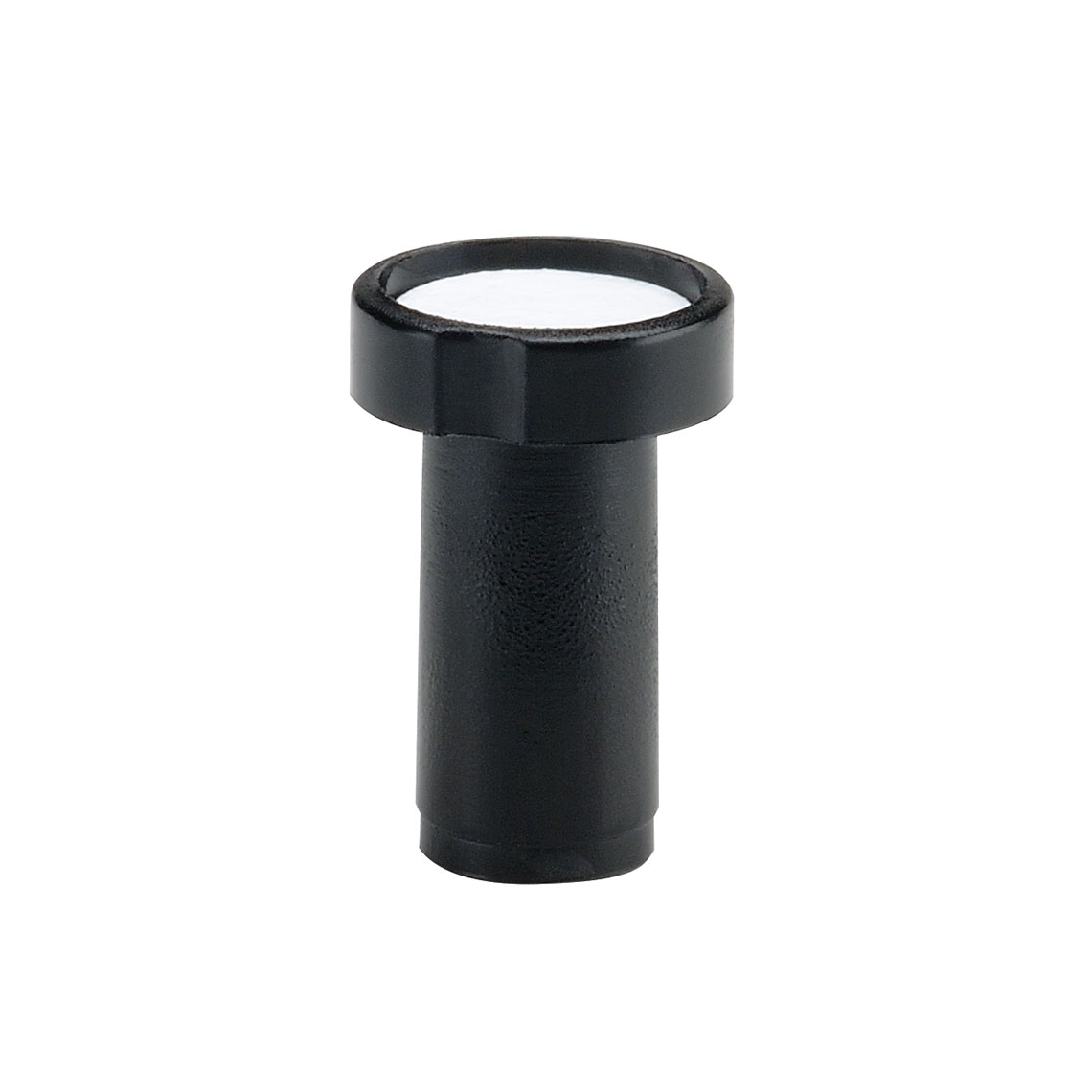

Submersible Filter Elements
Prevents dirt and moisture from entering the vent tube.

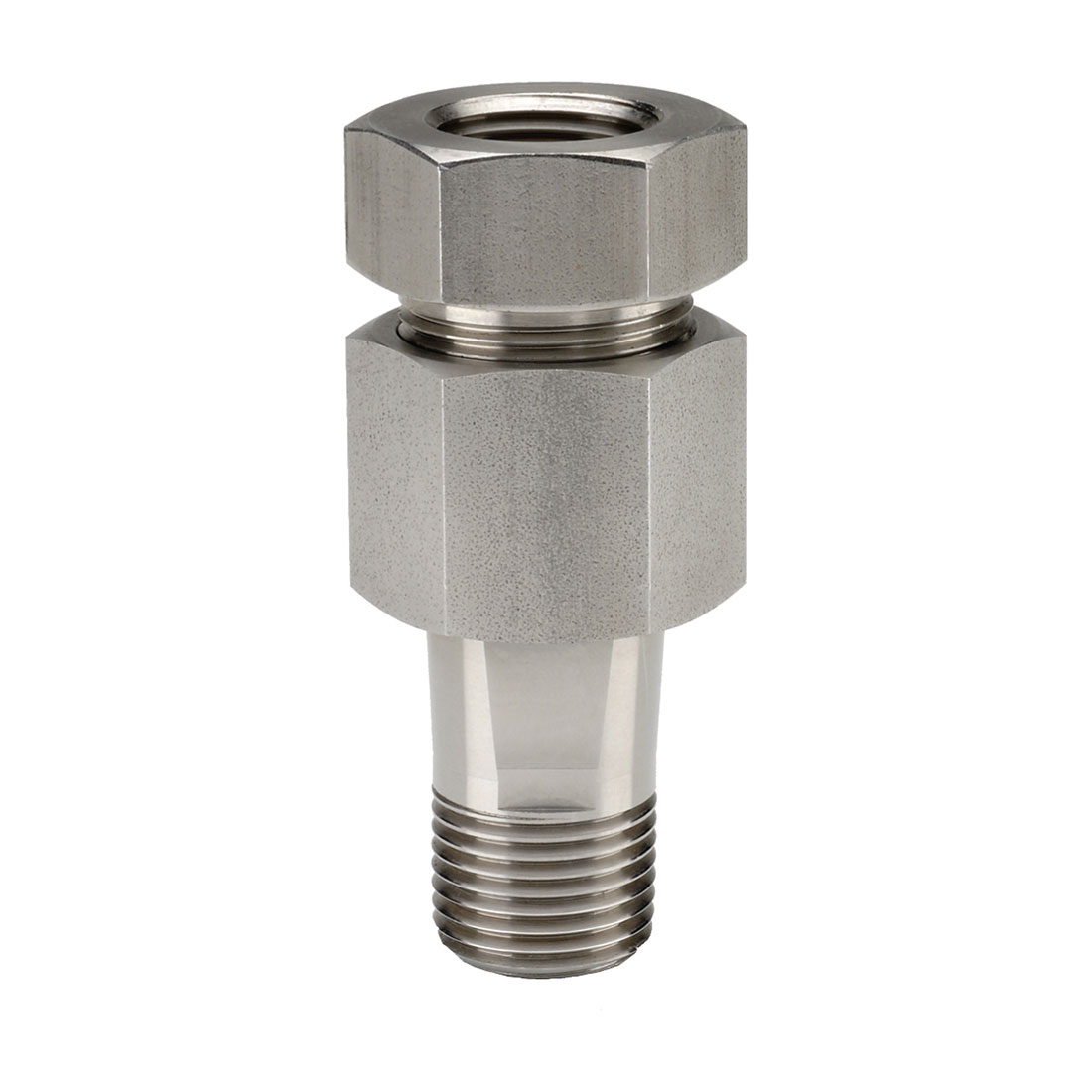

Swivel Adapters
Swivel Adapter are used with gauges and gauge valves to adjust the line of sight. The swivel adaptor rotates 360º to allow the connected instrument to be positioned in the desired direction and has temperature ratings of 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF. The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut.
U-Clamps
2.5" U-Clamp for NOSHOK back connected 300 Series Pressure Gauge to allow easy mounting of gauge to instrument panels.
Includes Bracket and Two Studs.
Includes Bracket and Two Studs.

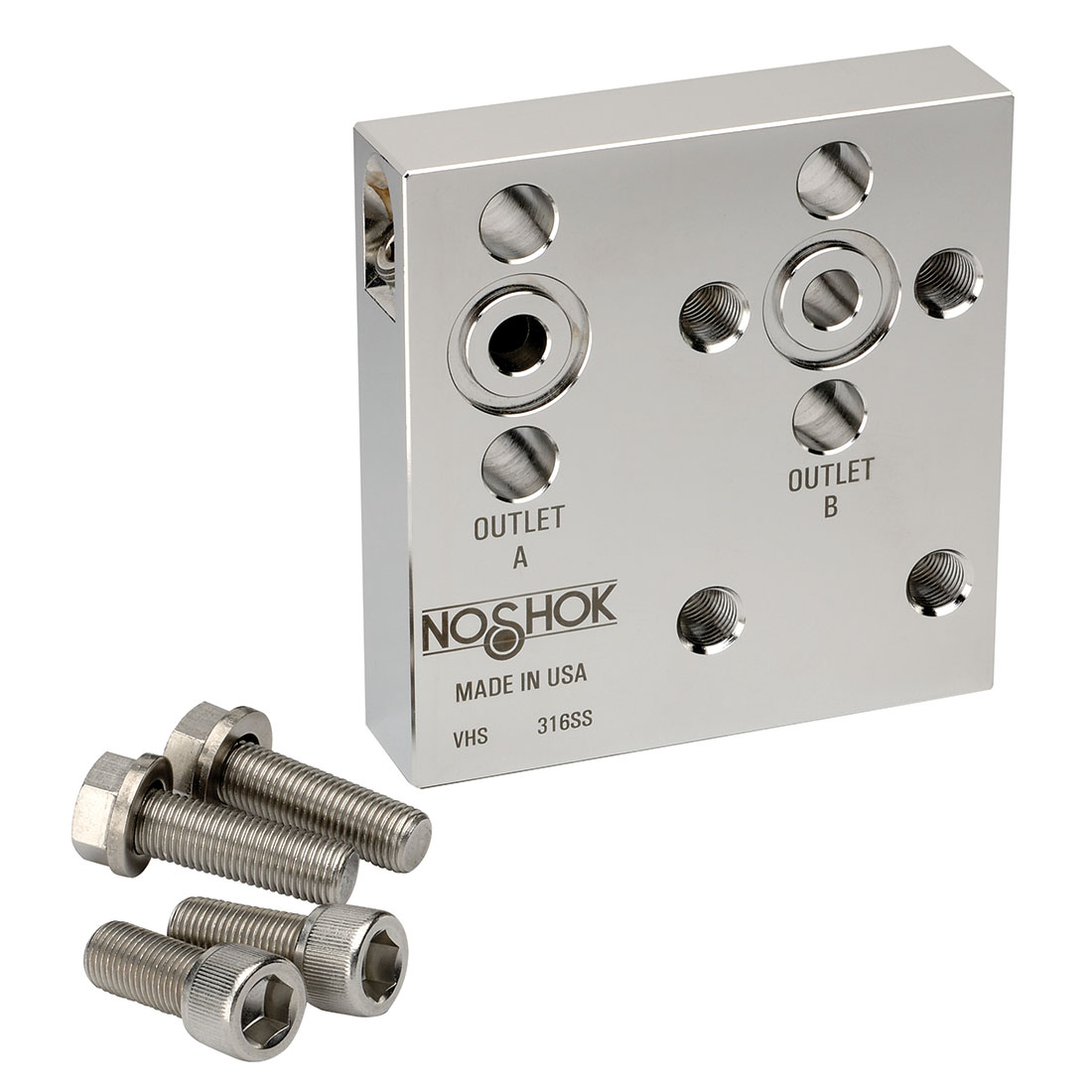

Vertical to Horizontal Adapter Kits
The Vertical to Horizontal Adapter Kit converts vertically mounted Stabilized Connectors to a horizontal position for mounting additional valves and instrumentation.
